Silicone Rubber Coated Fiberglass Cloth Heavy Duty Fireproof Welder Blanket For Industrial,Camping,Smokers And Grills
Description:

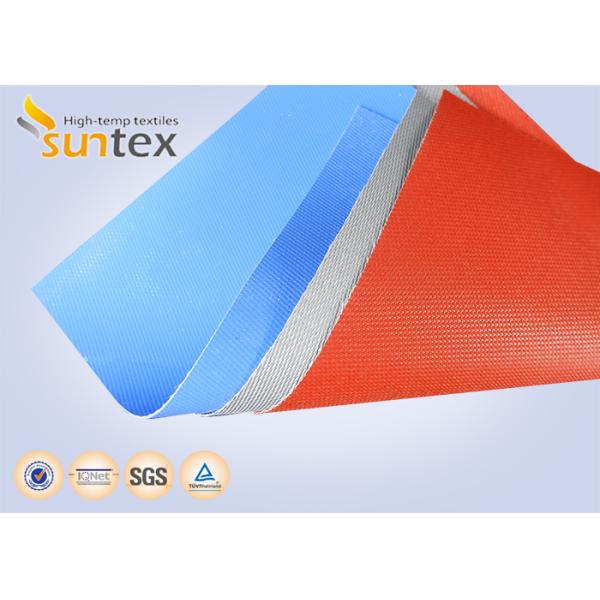

This fiberglass fabric material is impregnated with silicone rubber. The high temperature, flame retardant silicone rubber provides improved resistance to abrasion, flexing, tear and puncture. This product is designed specifically for high temperature (500°F) removable insulation blankets for valves, flanges, and fittings. Water and oil resistant, Flame retardant, Low smoke, Easily fabricated,
This is a medium weight fabric, suitable for light molten splash, weld splatter and grinding spark protection. The base fabric is coated on both sides with our special formulation of silicone rubber . Easy to work with when fabricating complex shapes for covers and shields. Provides against ozone, UV and abrasion.
Parameter List:
| BASE FABRIC | Base fabric style No. GF430P |
| | (metric) | (English) | Test methods |
| Weave | 4H Satin | Crowfoot | |
| | | | |
| Construction | | | |
| Warp | 18 ± 1 ends/cm | 48 ± 3 ends/inch | ASTM D 3775-96 |
| Weft | 12.6 ± 1 picks/cm | 32 ± 3 picks/inch | ASTM D 3775-96 |
| Weight | 430 ± 30 g/m2 | 12.6 ± 0.9 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.37 ± 0.06 mm | 0.015 ± 0.002 inch | ASTM D1777-96 |
| | |
| COATED FABRIC | Coating style No. SI261-1020 |
| Coating | Silicone rubber 2 sides |
| Weight | 730 ± 25 g/m2 | 21.5 ± 0.74 oz/yd2 | ASTM D3776-96 |
| Thickness | 0.53 ± 0.02 mm | 0.02 ± 0.0007 inch | ASTM D1777-96 |
| Color | Tarmac | |
| Fire resistance | Flame retardant | |
| Temp resistance | Glass fabric up to 5500C (10000F) Silicone rubber coating up to 2500C (4800F) |
Typical Applications:
Smoke curtain
Fire door
Thermal insulation covers
Fire blanket
FLexible ducts
Air connector
Features:
Dimensionally stable
Low friction non-sticking smooth surfaces
Dimensional stability under heat and pressure
Excellent chemical resistance
Excellent mechanical strength
Superior heat and cold resistance
High dielectric strength
Low electrical losses – non tracking
